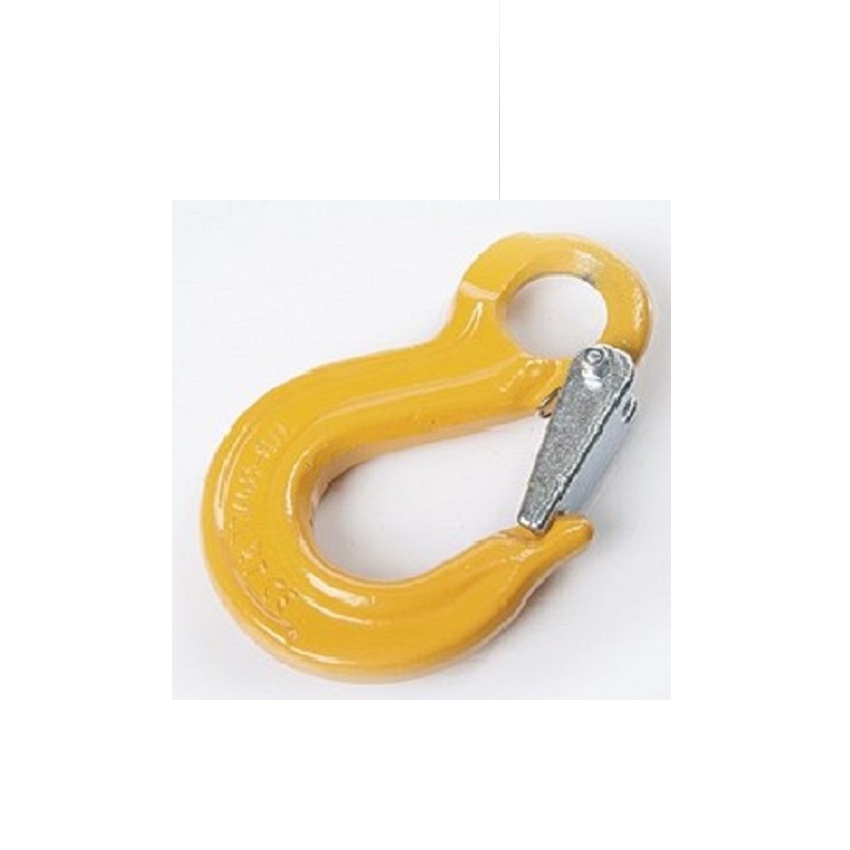

Grade 80 Alloy Steel Eye Sling Hook with Latch

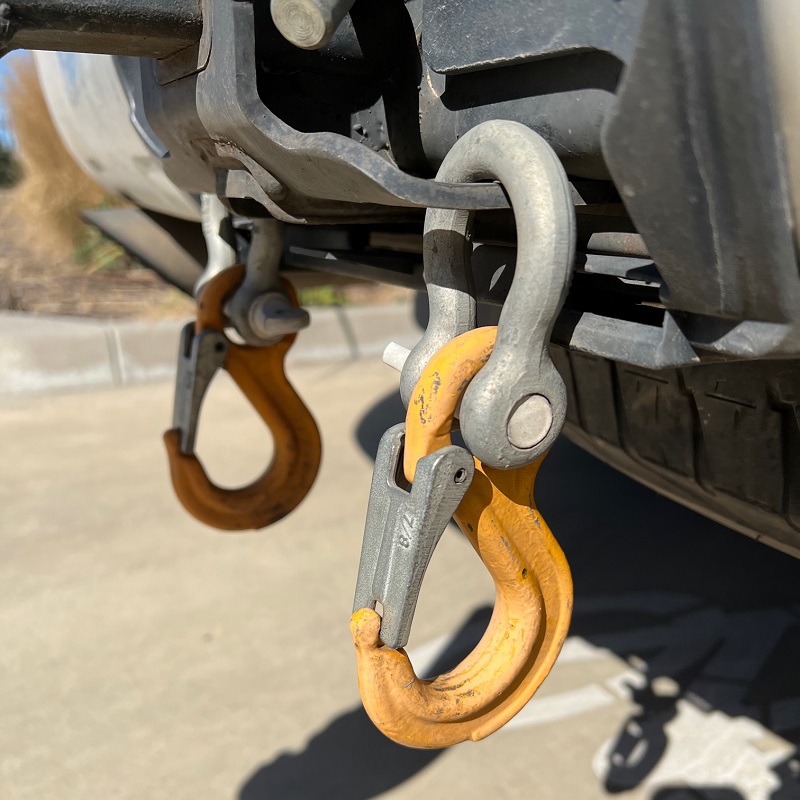

Lifting hook also good for tow chain connection when towing
• AS 3776 Compliant g80 eye sling hook
• Manufactured From Grade 80 Steel
• Test Certificates Available Upon Request
• Marked With Chain Size Grade And Manufactures Code
Generally used with the Connecting Links or Shackles
. OUTSIDE HOOK INSIDE HOOK JAW EYE W.L.L
G80 Eye Hook LENGTH WIDTH. LENGTH WIDTH. OPENING. HOLE LIMIT
PRODUCT KG MM MM MM MM MM MM
6MM SLING HOOK 0.2 105 70 35 30 20 18L x 18W 1100kg
7-8MM SLING HOOK 0.3 125 80 40 35 25 22L x 22W 2000kg
10MM SLING HOOK 0.4 160 105 50 45 30 35L x 35W 3200kg
13MM SLING HOOK 0.5 215 135 65 55 40 40L x 40W 5300kg
16MM SLING HOOK 0.7 250 150 80 65 45 45L x 45W 8000kg
