BALLARAT MATERIALS HANDLING EQUIPMENT

Electric Pallet Truck 1500kg

SKU TSPTE15N Category Tag

$4,389.00

Inc. GST

Electric Pallet Truck 1500kg

Lowered Height 85mm – Raised Height 200mm
Overall Length of unit 1530mm
Overall Width 685mm
20Ah 24V Removable Lithium Battery
Additional Batteries available for quick changeover
Separate charger allows freedom of charger placement (access to 240v 10A Standard Power point required)
Watch an information video here
Download PTE15N Manual

Available on backorder

Electric Pallet Truck 1500kg

The new model of electric lift electric drive pallet truck combines the advantages of a manual pallet truck with the ease of an electric pallet truck making it the perfect product for light and medium-duty material transportation in a most effortless and economical way.

Watch an information video here

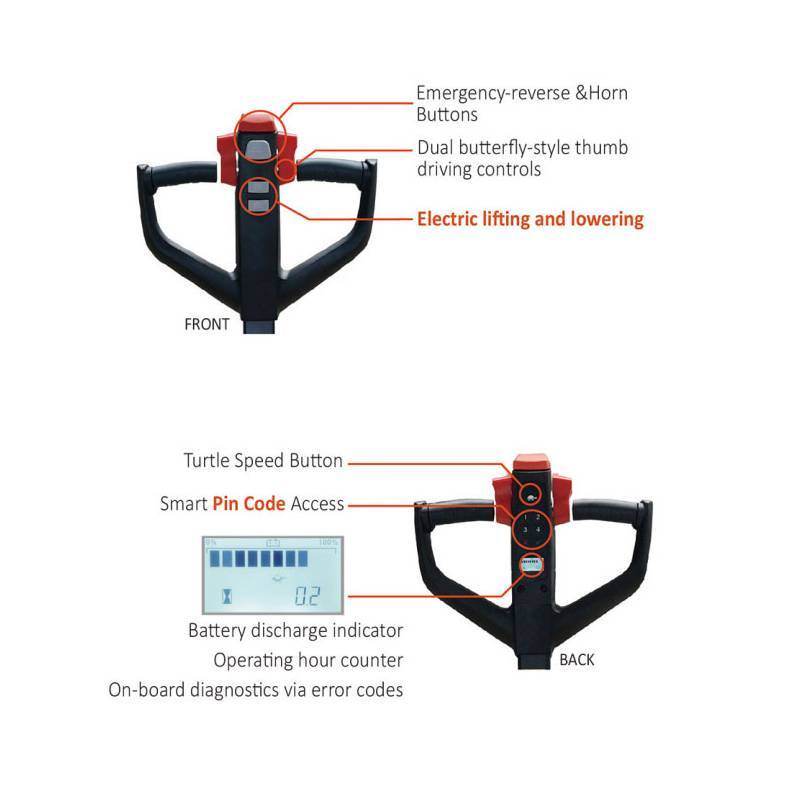

  • Ergonomic & Smart Tiller Design
  • Comfortable soft grips for daily operation.
  • The tiller is supported by an air spring and the tiller returns to its vertical position smoothly.
  • All buttons are big and can be easily reached by operators even when working in gloves.
  • Integrated PIN code panel with LCD display for smart control and operation.
  • Speed reduction at different angles as well as the function of allowing operation with the tiller in its upright position.
  • The function of driving with the tiller in the vertical position helps with work in confined areas, especially in elevators and tight areas without sacrificing of safety.
  • Smart Lithium Battery
  • The Edge is equipped with a maintenance-free Lithium battery.
  • with its fast charging and opportunity charging features the Edge works as easy as a hand pallet truck without special attention to the maintenance as other electric pallet trucks.
  • The integrated BMS (Battery Management System) controls all important parameters and performance of lithium battery.
  • Socket on the battery case for easy battery charging without the necessity of removing the battery pack.
  • Fast and opportunity charging can be done during breaks in operation, increasing working time.
  • Maintenance Friendly
  • Convenient and fast access to any component of the truck, no elements are located in areas difficult to reach. No special tools are required.
  • There are no hoses or pipes used in the hydraulic lifting circuit which significantly improves reliability and reduces the number of potential problems related to leakages through connectors or their seals.
  • The truck is equipped with Curtis controller and CAN-bus technology makes the diagnostic and troubleshooting easier.
  • Robust Smart Design of Chassis
  • The frame of this Electric Pallet Truck truck is surrounded by stamped steel elements making the truck look different and also ensuring the protection of components.
  • Forks of the truck shaped for easy entrance and exit from pallets.
  • Full length double-sided C-shape reinforcements of forks significantly increase strength and rigidity of frame.
  • Strong steel apron protects the operators’ feet during operation and secures the trucks components from collisions with objects.
